Case Study: Grid Dynamics – Phase 2 Audiovisual Integration for Corporate Spaces | Bangalore
Project Overview

Following the successful implementation of Phase 1, Allwave AV Systems Pvt. Ltd. was tasked with integrating the next phase of audiovisual solutions throughout the client’s corporate facility, which included a boardroom, multiple meeting rooms, the general manager’s cabin, and a café. The goal was to provide seamless collaboration, clarity, and flexibility while keeping the systems future-proof and simple to use.Spaces Included in Phase 2:

Reception Area
General Manager’s Cabin
4-Pax Meeting Rooms (4 quantity)
6-Pax Meeting Rooms (4 quantity)
16-Pax Boardroom
Cafeteria

Key Equipment Installed

To meet the client’s needs, Allwave AV integrated best-in-class equipment, ensuring the solutions were tailored to the specific space requirements.

Boardroom (16-Pax):

Logitech Rally Plus: A cutting-edge video conferencing solution ideal for larger spaces such as the boardroom, featuring high-quality video and audio, a motorised camera, and speakers designed for clear communication.
Samsung 4K UHD Pro Signage Display: A large 4K display was installed to provide sharp and vibrant visuals suitable for high-stakes presentations and video conferencing.

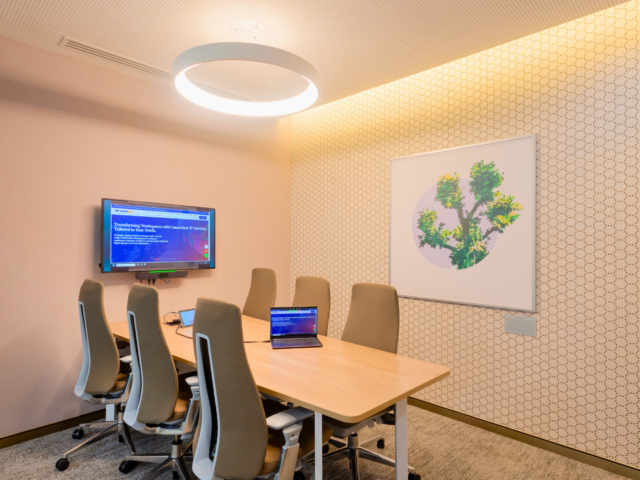

Small meeting rooms (4- and 6-person capacity):

Logitech Meetup: A compact and highly effective solution for small to medium meeting rooms, with an all-in-one design that includes speakers, microphones, and a camera for crisp, clear video conferencing.
Samsung Displays: High-definition displays were installed in these smaller rooms to provide clear visuals for video calls, presentations, and other collaborative activities.

Cafeteria:
  1. 5000 Lumens WUXGA LCD Lamp Projector: Installed to provide bright and clear projections even in well-lit environments. The projector was paired with a 123″ Motorised Projection Screen for ease of use and storage.
  2. 4K UHD Professional Signage Display: Installed in the cafeteria area to display dynamic signage, advertisements, or content, with vibrant visuals and high-resolution clarity.
  3. Helvia Globe-560XW Speakers: These high-performance speakers were chosen for their ability to deliver rich, clear, and loud sound, ensuring optimal audio coverage across the entire office space.
General Manager’s Cabin:
  1. Aver CAM550: A high-definition camera used for professional video conferencing that ensures crystal-clear video calls and communication for the general manager.
  2. StudioMaster XR 100 2HL Speakers: Premium-quality audio systems ensure clear and balanced sound for meetings and video conferencing in the GM’s cabin.
    Audio System:
Technologies Used:
  1. Logitech Rally Plus: Advanced video conferencing technology for large meeting rooms that provides high-quality video and audio via motorised cameras.
  2. Logitech Meetup is an all-in-one camera and audio solution for small meeting rooms.
  3. Samsung 4K UHD Professional Signage Display: High-quality, high-resolution display options for dynamic signage and presentations.
  4. 5000 Lumens WUXGA LCD Lamp Projector: A powerful projector that can deliver bright images in a variety of lighting conditions.
  5. Aver CAM550 is a professional-grade camera designed for clear, high-definition video conferencing.
  6. Studiomaster XR 100 2HL Speakers: High-quality, powerful speakers designed to provide optimal sound in small and large spaces.
  7. Helvia Globe-560XW Speakers: Audio speakers with exceptional sound clarity and coverage, ideal for corporate environments.
Phase 2 successfully improved the client’s corporate spaces through customised audiovisual solutions. Key results include:
  1. Enhanced Collaboration: The Logitech Rally Plus and Logitech Meetup video conferencing systems enabled seamless communication in a variety of settings, from the boardroom to smaller meeting rooms.
  2. Improved Audio-Visual Experience: The Samsung 4K UHD Professional Signage Displays and 5000 Lumens WUXGA Projector produced vibrant visuals, while the Helvia Globe-560XW and Studiomaster XR 100 2HL speakers delivered excellent sound quality throughout all spaces.
  3. Flexible, Scalable Solutions: The modular approach used with these top-tier solutions ensured that the systems could scale as the client’s needs changed, allowing for easy integration of new technologies.
  4. User-Friendly Setup: With simple controls and intuitive interfaces, employees could operate the systems without requiring extensive training.
Conclusion

Allwave AV converted the client’s corporate spaces into highly functional and collaborative environments by integrating Logitech Rally Plus, Logitech Meetup, Samsung 4K UHD Displays, Aver CAM550, Studiomaster XR 100 2HL Speakers, 5000 Lumens WUXGA Projector, and Helvia Globe-560XW Speakers. The AV systems not only met the specific needs of each space, but also laid the groundwork for future expansion, ensuring the client had scalable, high-quality solutions for years to come.

Project Overview: Native Microsoft Teams Room (MTR) with Advanced AV Integration

Vivro Financial Services wanted to revamp its meeting rooms to accommodate the latest in video conferencing technology, enhancing collaboration across their multiple offices. The primary requirement was to create a modern Microsoft Teams Room (MTR) that would enable seamless communication, video conferencing, and content sharing, while maintaining a clutter-free, functional, and aesthetically pleasing environment.

To address these needs, we designed a custom audiovisual and unified collaboration solution for their 12-seater conference room. This space now serves as a hub for board meetings, client presentations, and internal discussions, ensuring participants can connect and collaborate effectively, whether they are in the room or remote.

Native Microsoft Teams Room

Solution Highlights

We tailored the following solutions to meet Vivro’s specific needs:

Samsung QB85C Display with Custom Swivel Bracket
A Samsung QB85C 85-inch UHD display is installed as the centerpiece of the room. The display is mounted on a custom swivel bracket, allowing for flexible viewing angles. Whether seated directly in front of the screen or at a side angle, we ensured that the participants got a clear view, enhancing engagement during presentations and video calls.

Yealink A30-025 Video Bar with Active Tracking Speaker Camera
For video conferencing, we integrated the Yealink A30-025 video bar, which features an active tracking speaker camera. This intelligent camera dynamically follows the speaker, ensuring they remain the focal point of the conversation during meetings. The result is a natural and interactive meeting experience, ideal for maintaining engagement with remote participants.

Native Microsoft Teams Room Integration
The room is fully equipped with a native Microsoft Teams Room (MTR) system. This setup allows Vivro employees to initiate or join Teams meetings with a single touch, ensuring a smooth, intuitive workflow. The Teams Room includes the Yealink CTP18 Touch Panel for control and the WPP30 Wireless Presentation Solution, enabling hassle-free screen sharing from any device without the need for cables.

Yealink VCM36-W Wireless Table Microphone & VCH51 Content Sharing Hub
Audio clarity is critical in any conferencing environment. We deployed Yealink VCM36-W wireless table microphones across the conference table to ensure crystal-clear audio capture from all participants, regardless of where the seats are located. The microphones’ wireless nature maintains a clean and uncluttered table surface, aligning with the aesthetic vision of Vivro’s leadership.
In addition, the Yealink VCH51 hub integrated is for seamless wired content sharing, giving flexibility to users who prefer a wired connection for presentations.

Room-Cast Yealink 001 for Multi-Screen Sharing
To meet the growing demand for multi-screen presentations, we implemented the Room-Cast Yealink 001. This feature allows up to four users to share their screens simultaneously, all displayed together on the Samsung QB85C. This capability fosters interactive discussions and collaborative problem-solving during meetings, where data from different departments can be reviewed side-by-side.

Kramer Auto-Switcher for Optimized Connectivity
Kramer Auto-Switcher integrated into the system is to manage various AV sources automatically. This device detects active input sources and switches accordingly without requiring manual intervention, further enhancing the user experience by simplifying device management.

Yealink RCH40 Network Switch for Reliable Connectivity
To ensure the seamless functioning of all connected devices, a Yealink RCH40 Network Switch is also given in the solution. This network switch provides stable, high-speed connectivity across all AV devices in the conference room, guaranteeing smooth video conferencing, content sharing, and device synchronization.

Key Benefits Delivered

Enhanced Collaboration: Vivro’s employees can now easily communicate with clients, partners, and colleagues from different locations, using the latest video conferencing technologies in a seamless, intuitive environment.
Improved Productivity: With the one-touch join feature of Microsoft Teams and wireless content sharing via the WPP30, the time spent setting up meetings and dealing with technical glitches has been significantly reduced.
Dynamic Presentations: The ability to share four screens at once using Room-Cast Yealink 001 provides a dynamic, interactive environment for brainstorming sessions and client presentations.
Effortless Control: The Yealink CTP18 touch panel ensures that even non-technical users can manage meetings and presentations without a steep learning curve.
Future-Proof Solution: The solution was designed with scalability in mind, allowing for easy upgrades as new technologies emerge.

Conclusion

By integrating a modern Microsoft Teams Room solution with high-quality video and audio equipment, we successfully delivered a state-of-the-art collaboration environment for Vivro Financial Services. The combination of the Samsung QB85C display, Yealink A30-025 video bar, wireless presentation solutions, and multi-screen sharing capabilities ensures Vivro’s conference room is not only future-ready but also optimized for both in-person and remote collaboration.

SEBI Boardroom Audiovisual Refresh: Enhancing Excellence for a Prestigious Client

We were proud to complete a comprehensive non-display audiovisual refresh for one of our most prestigious clients, the Securities and Exchange Board of India (SEBI). This project sought to modernise the audiovisual infrastructure in SEBI’s most important boardroom, a critical space for the organization’s high-risk operations.

SEBI is India’s securities market regulator

The Securities and Exchange Board of India (SEBI) is India’s authoritative body in charge of regulating the securities market. As a pillar of India’s financial sector, SEBI’s operations necessitate precision, dependability, and top-tier security. The boardroom, which serves as a hub for critical decision-making, required an upgraded audiovisual system to ensure smooth operation.

The Challenge: Upgrade SEBI’s Boardroom AV System

Our task was to modernise the audiovisual components in SEBI’s main boardrooms. This wasn’t just a routine upgrade; it was a significant improvement aimed at non-display components such as microphones, speakers, cabling, and connectors. Given the importance of boardroom meetings, clear communication is essential. The existing system, while still operational, required modernisation to ensure long-term dependability, improved performance, and readiness for future demands.

The Solution: Strategic AV Modernisation for SEBI

Recognising the importance of SEBI’s operations, we prioritised modernising the audiovisual system’s non-display components. Key enhancements included:

1. Enhanced Audio System.
We upgraded the microphones and speakers to provide clearer, more consistent sound quality, ensuring that every voice is heard clearly regardless of seat position.
2. Durable Cabling and Connectors
We replaced worn-out components with high-quality, durable cables and connectors, lowering the risk of signal degradation and ensuring stable, long-lasting connections.
3. Streamlined Control Systems
The control interface was optimised for ease of use, allowing for seamless management of the boardroom’s audiovisual setup, resulting in smooth and efficient operation.

Implementation: Precision Planning and Execution

Given SEBI’s critical operations, our team meticulously planned the implementation to ensure minimal disruption. The upgrade was completed during off-peak hours, with our professionals working diligently to avoid any downtime. The process involved:

1. Installation and Calibration.
Every component was installed, tested, and calibrated to ensure optimal performance.
2. Thorough Testing
Extensive testing followed the installation to ensure that all systems worked together seamlessly and provided the high-quality audio experience SEBI required.
3. Training and Support We trained SEBI’s technical staff to independently manage and maintain the upgraded systems.

The outcome: A dependable and high-performing boardroom

The modernisation of SEBI’s boardroom audiovisual system resulted in significant reliability and performance enhancements. The upgraded microphones and speakers provided crystal-clear audio, which is essential for effective communication during meetings. The new cabling and connectors fixed previous connectivity issues, resulting in a stable and reliable system. Furthermore, the streamlined control system allowed SEBI’s team to manage the boardroom’s audiovisual setup more efficiently, reducing complexity during high-pressure meetings.

Conclusion: Strategic Modernisation of SEBI’s Critical Operations

Maintaining a flawless operational environment is critical for an organisation like SEBI. This comprehensive non-display audiovisual refresh was more than just an upgrade; it was a strategic modernisation to support the critical functions of India’s most important financial regulatory body. Our meticulous planning and execution demonstrate our dedication to excellence, resulting in a boardroom that meets—and even exceeds—the needs of SEBI’s critical operations. This project reaffirms our position as a reliable partner in SEBI’s continued success.

Learn More: https://www.allwaveav.com/boardroom-conference-rooms/

Learn More: https://www.commercialintegrator.com/topic/communications/









Introduction

In today’s fast-paced business environment, advanced audio-visual (AV) solutions are crucial for effective communication and collaboration in boardrooms. This case study explores the integration of the Yealink AV system in a medium-to-large boardroom, highlighting its impact on communication and overall meeting efficiency.

Boardroom Setting: A modern boardroom that requires high-quality AV solutions to facilitate seamless communication and presentations. The setting demands reliable technology that can support both in-room and remote participants effectively.

Solution Overview: Yealink MVC860-C5-713 Video Conferencing System: Tailored for medium-to-large rooms, this system offers a comprehensive solution that integrates seamlessly with Microsoft Teams Rooms, boosting meeting efficiency and collaboration across dispersed teams.

Camera and Control: The system features a UVC86 12X optical PTZ 4K dual-eye intelligent camera that ensures high-definition video capturing. The VCR20 remote control allows easy adjustments and operation, adding convenience and flexibility during meetings.

Core System Components

The Yealink MCoreKit-C5 includes:

MCore Pro mini-PC
MTouch Plus touch panel
RoomSensor

These components streamline the management and automation of the meeting environment, enhancing user experience and operational efficiency.

Content Sharing: The WPP30 enables wireless content sharing, facilitating presentations and collaboration without physical constraints, thus enhancing the flow of meetings.

Audio System: The audio setup comprises two VCM35 array microphones and the Yealink MSpeaker II. This configuration ensures clear and powerful audio capture and output. The microphones feature a 360-degree voice pickup range of up to 6 meters, ideal for large boardrooms, ensuring every participant is heard clearly.

Network and Power: The RCH40 PoE Switch simplifies connectivity and power supply for audio components, enhancing setup cleanliness and reliability.

Software and Warranty: The system is preloaded with Windows 10 IoT Enterprise OS and Microsoft Teams Rooms App, offering out-of-the-box functionality. It includes a two-year hardware warranty, providing assurance on the investment.

Implementation

Installation Process: The system was installed following a detailed plan that addressed specific challenges such as room acoustics and component placement for optimal performance. Feedback from IT specialists indicated that the integration with existing infrastructure was smooth and efficient.

System Integration: The Yealink MVC860-C5-713 was seamlessly integrated with the existing Microsoft Teams setup, ensuring a unified communication platform that supports both in-room and remote participants.

Benefits

Enhanced Meeting Efficiency: The dual-eye camera and intelligent microphone placement automatically focus on the speaker, reducing the need for manual adjustments. This feature enhances the meeting flow and reduces downtime.

Superior Audio-Visual Quality: The system ensures crystal-clear audio and sharp video for all participants, which is crucial for detailed presentations and discussions.

Ease of Use: The integration with Microsoft Teams and plug-and-play capabilities make the system accessible for all users, regardless of their tech proficiency.

Reliability and Support: With a robust warranty and comprehensive customer support, the boardroom’s AV needs are securely backed up, ensuring minimal downtime and reliable performance.

Conclusion

The integration of the Yealink AV system has significantly transformed boardroom communication, enhancing collaboration and meeting efficiency. The system’s advanced features and ease of use have streamlined operations, ensuring that the boardroom remains a hub for productive and effective meetings.

Our client, a leading educational institution, envisioned an advanced auditorium equipped with state-of-the-art audiovisual technology to facilitate immersive learning experiences, dynamic presentations, and seamless collaboration.

Client Feedback:

“As Mr. Rajesh Vaidya put it, ‘The communication within the project team was excellent, and the coordination among support teams was also good. The project team, in particular, did a great job at coordination, ensuring that the project timelines were well-maintained.”

  • Mr. Rajesh Vaidya
  • KPIT



Challenges Faced: The client sought to overcome several challenges in their existing auditorium setup
  • Outdated audiovisual equipment hindering effective communication.
  • Lack of coordination among different audiovisual components resulting in inefficiencies.
  • Inadequate support for modern presentation techniques and interactive sessions.
Solution Provided:

Working closely with the client, our team developed a comprehensive audiovisual solution tailored to their specific requirements. Here’s an overview of the key components installed:



A. Display System:

Implemented a high-resolution LED Wall Processor by Novastar (4K Prime) to drive the LED Wall, ensuring vibrant and crisp visuals.
Installed a 65″ Sidefill Display with custom brackets for optimal viewing angles.

B. Display Support System:

Integrated a custom-designed Floor Box with HDMI, Data, and Power Connectivity, providing seamless integration with the auditorium setup.
Recommended a Cisco network switch with 48 ports for robust network connectivity.

C. Video Conferencing (VC) System:

Deployed Sony PTZ Cameras (SRG-A12 for Trainer, SRG-A40 for Audience) with IP-based Joystick Controller (Sony RM-IP500) for versatile camera control.
Utilized Inogeni HDMI to USB Capture Card for efficient video capture.
Supplied a Thin Client PC for wireless presentation capabilities.

D. Audio System:

Installed Amplifiers and  DSP for pristine audio output and sophisticated signal processing.
Integrated Sennheiser wireless microphones and receivers for clear and reliable audio transmission.
Included a Studiomaster AIR16U Analog Mixer for versatile audio control. Along with KME ILS 64 FOH Speakers, which were wall mounted in the Auditorium.

E. Lectern:

Provided a custom-designed lectern with USB charging, power sockets, LED light, and an openable flap for convenience during presentations.

F. Control System:

Implemented Cue Systems Versatile D AV Controller for centralized control of audiovisual devices.
Installed custom wall mounts for iPads to streamline user interaction and control.

G. Cables & Connectors:

Supplied high-quality bulk cables for audiovisual and collaboration needs, ensuring reliable connectivity.

H. Services:

Offered comprehensive installation, testing, and commissioning services, along with system development and one-year onsite support.
Programmed DSPs to enable complete AV control via iPads, enhancing user experience and convenience.

Additional Material:

Provided essential accessories such as a trolley for confidence monitor, tripod for cameras, WiFi router, and AV rack for efficient equipment management.

Challenges Faced in detail:

Outdated audiovisual equipment hindering effective communication:

Prior to our intervention, the client’s auditorium was equipped with outdated audiovisual systems that struggled to deliver clear and immersive communication experiences. This limitation hindered the effectiveness of presentations and lectures, impacting audience engagement and understanding.
Lack of coordination among different audiovisual components resulting in inefficiencies:

The disparate nature of the existing audiovisual setup led to coordination challenges, resulting in inefficiencies during events and presentations. Without seamless integration and coordination among components, the client faced difficulties in managing and operating their audiovisual infrastructure efficiently.
Inadequate support for modern presentation techniques and interactive sessions:

The existing setup lacked support for modern presentation techniques and interactive sessions, limiting the client’s ability to engage their audience effectively. Without the necessary tools and technology, the client struggled to deliver dynamic and engaging presentations that met the evolving needs of their audience.

Results Achieved:

Enhanced communication and collaboration among presenters and audience members:

By upgrading to state-of-the-art audiovisual technology, we facilitated clear and immersive communication experiences within the auditorium. The high-resolution LED Wall Processor and strategically placed displays ensured that visuals were vibrant and crisp, capturing the audience’s attention and enhancing comprehension. Additionally, the deployment of advanced VC systems enabled seamless remote collaboration, allowing presenters to engage with remote participants effectively.

Streamlined operation and control of audiovisual devices, leading to smoother presentations:

Through the implementation of a comprehensive control system and custom-designed floor boxes, we addressed the coordination challenges faced by the client. Centralized control of audiovisual devices simplified operation, allowing presenters to focus on delivering their content without disruptions. The integration of network switches and high-quality cables ensured reliable connectivity, minimizing technical glitches and downtime during presentations.

Modernized infrastructure supporting a wide range of interactive teaching and presentation techniques:

The revamped audiovisual infrastructure provided the client with the flexibility to adopt modern presentation techniques and interactive sessions. The inclusion of wireless presentation capabilities, custom-designed lecterns, and advanced audio systems empowered presenters to deliver engaging and interactive content. Additionally, the provision of essential accessories such as trolleys, tripods, and AV racks enhanced the versatility and functionality of the auditorium, enabling the client to accommodate diverse event requirements seamlessly.

Conclusion:

In conclusion, our collaborative effort with the leading educational institution resulted in a transformative upgrade of their auditorium audiovisuals, addressing key challenges and unlocking new possibilities for enhanced collaborative experiences. By meticulously analyzing the client’s pain points and tailoring our solution to their specific requirements, we successfully modernized their infrastructure while ensuring seamless integration and operation.

Sanofi: Seamless Audiovisual Integration PAN India | Zoom Rooms

Sanofi, a leading global pharmaceutical company, sought to enhance their communication and collaboration capabilities across their offices in India. With a focus on upgrading meeting rooms, conference rooms, and boardrooms. Sanofi aimed to streamline their operations and improve productivity through integrated audiovisual solutions and standarized their video conferencing platform as Zoom Rooms throughout PAN India. Therefore they partnered with us, a trusted provider of AV integration services, to fulfill their vision.



Challenges:

Nationwide Deployment: Sanofi required AV systems to be installed in multiple locations across India, presenting logistical challenges and the need for standardized solutions.
Integration with Zoom Rooms: The client requested seamless integration with Zoom Rooms. It ensures compatibility and ease of use for their employees.
Varied Room Types: Meeting rooms, conference rooms, and boardrooms each had unique requirements, necessitating tailored solutions for optimal performance.

Solution:

Our team conducted a comprehensive assessment of Sanofi’s requirements and infrastructure to devise a customized solution.

Leveraging our expertise in AV integration and collaboration technologies, we proposed the following:

Unified AV Platform: Implementing a standardized AV platform based on Zoom Rooms technology to ensure consistency and ease of use across all locations.
Room-Specific Solutions: Tailoring AV setups to suit the specific needs of each room type. It includes display screens, cameras, microphones, and speakers optimized for meeting rooms, conference rooms, and boardrooms.
Nationwide Deployment: Coordination with local teams and vendors for efficient deployment of AV systems across multiple Sanofi offices throughout India.
Training and Support: Providing comprehensive training sessions for Sanofi employees to familiarize them with the new AV systems. Offering ongoing support to address any technical issues or questions.

Results:
The successful implementation of audiovisual systems integration for Zoom Rooms across Sanofi’s offices in India yielded significant benefits:

Enhanced Collaboration: Seamless integration with Zoom Rooms facilitated smooth and efficient virtual meetings, fostering collaboration among Sanofi teams nationwide.
Improved Efficiency: Standardized AV setups simplified meeting processes and reduced the time spent on technical troubleshooting. Leading it ahead to improved operational efficiency of the organization.
Consistent User Experience: Employees experienced a consistent and user-friendly interface across all meeting spaces and regardless of location or room type.

Conclusion:

By partnering with us for audiovisual systems integration. Sanofi successfully transformed their meeting rooms, conference rooms, and boardrooms into modern collaboration hubs. The standardized AV platform, tailored solutions, and nationwide deployment have empowered Sanofi to conduct seamless virtual meetings. Leading it ahead to drive productivity across their organization. As a trusted partner, we remain committed to supporting Sanofi’s audiovisual needs and enabling their continued success in the dynamic landscape of modern workplace technology.

Read more https://www.allwaveav.com/zoom-rooms-team-rooms/

Transformative Audiovisual Integration for WNS

At the intersection of innovation and efficiency, WNS. A global business process management (BPM) company, sought to elevate its work environment. Our team at Allwave AV proudly presents a case study highlighting our successful integration of a cutting-edge audiovisual system, tailored to meet the diverse needs of WNS’s dynamic workspaces.

Tailored Solutions for Enhanced Communication:

In response to the multifaceted requirements of WNS, we designed and implemented a comprehensive audiovisual solution. Which resulted in enhanced communication and collaboration across various spaces within their premises.

Video Conferencing Excellence Across Five Spaces:

Addressing the need for seamless virtual collaboration, our team designed a video conferencing system for five distinct spaces. A 17-person room, an 8-person room, a 6-person room, and a dedicated training room. The choice of Logitech solutions guaranteed top-tier. With high-definition video conferencing experiences throughout the organization along with Samsung. Which is one of our preferred vendor renowned for delivering exceptional visual experiences.

Holistic Integration with Accessories:

In tandem with Logitech’s cutting-edge technology, we curated a suite of accessories to complement and enhance the Video Conferencing (VC) System in each space. Meticulously selected accessories ensured flawless video communication, creating a holistic and optimized conferencing environment.

Display Excellence with Samsung:

For the Display system, we turned to Samsung, our preferred vendor renowned for delivering exceptional visual experiences. Thoughtfully chosen Samsung displays not only promise quality but also seamlessly integrate with Logitech video conferencing solutions. Leading it towards creating a unified and superior audiovisual experience.

Training Room: A Hub of Technological Advancement:

In the expansive training room, our team curated a sophisticated setup to meet the demands of dynamic training sessions. The impressive “Samsung – QM85” – an 85-inch Professional 4K LED Display – paired with Logitech RALLY PLUS, forms a powerful synergy, creating an immersive and technologically advanced training environment.

Complete AV Setup: Wall Mount Bracket and Faceplates:

Enhancing flexibility and functionality, our custom wall mount bracket ensures optimal display placement, offering easy adjustments for a perfect view. Alongside, our AWAV Faceplates with Bulk Cables contribute to a streamlined and organized workspace. It supports HDMI, VGA, VGAA, USB, and AV connectivity.

Professional Installation, Commissioning, Testing:

Our commitment extends beyond equipment provision. Our professional team provided installation, commissioning, and testing services. It ensures the seamless integration of the audiovisual setup into each room. Step into the future of collaborative spaces, where technology meets design, and communication knows no bounds.

This case study exemplifies our dedication to delivering top-tier audiovisual solutions, enhancing communication, collaboration, and overall productivity within WNS’s dynamic work environment.

Project Overview:

Witness a remarkable transformation in a 35,000-square-foot cafeteria, where the audiovisual system for their cafeteria received a substantial upgrade. This encompassed the Multipurpose room, Dining area, and Kitchen-Bar area, each featuring a one-of-a-kind design.

Challenges:

The team at Allwave AV worked closely with the Capital Land organization to ensure that the Audiovisual System met all their requirements and specifications. The outdoor LED screen was a particularly challenging aspect of the project. It had to withstand all kinds of weather conditions while still providing high-quality visuals. The speaker installations were at almost 20 feet above. The complete fabrications of the active LED were also done by Allwave. The entire project completion was done under 30 days.

Allwave AV also provided seamless and effective audiovisual solutions for the multipurpose room, dining area, and kitchen AV bar area. The goal was to create a fully immersive experience for all visitors, whether they were there for business or pleasure.

Timeline:
  • The project completion timeline was set at 2 months, but the LED Wall installation was completed within 2 days with cue controllers for control. Goods’ delivery was completed within 30 days, including imports for the active LED.
  • This impressive turnaround time was achieved through the efficient planning and execution of the project by the team at Allwave. The team worked tirelessly to ensure that all aspects of the installation were completed to the highest standard, while also adhering to strict timelines and budgets.
  • The use of cue controllers for the LED Wall installation allowed for seamless control and synchronization of the LED panels, creating a stunning visual display. In addition, the speaker installations at a height of almost 20 feet required careful planning and execution to ensure optimal sound quality throughout the space.
  • Allwave’s expertise in fabrication also played a crucial role in the project’s success, with the team delivering a flawless, custom-made active LED that perfectly fit the client’s needs. Overall, the project was a testament to Allwave’s commitment to excellence and their ability to deliver exceptional results within tight deadlines.
Project Team:
  • The AV system designers worked closely with the project managers to ensure that the AV system was not only functional but also aesthetically pleasing. They carefully selected equipment that not only met the requirements of the space but also complemented the overall design of the venue.
  • One of the challenges that the team faced was ensuring that the audio system delivered high-quality sound throughout the space. They had to take into consideration factors such as room acoustics and the placement of the speakers to ensure that the sound was clear and balanced.
  • To achieve this, the team used state-of-the-art equipment such as the JBL column arrays, which provided even sound coverage throughout the space. The Crown amplifiers were also chosen for their reliability and ability to deliver high-quality sound.
  • The touch panel interfaces and cue controllers allowed for easy operation of the system, and the audio system delivered crystal-clear sound. The team’s hard work paid off, and the venue’s guests were able to enjoy a memorable audiovisual experience.
Challenges Overcome:
  • The project team encountered challenges while installing the LED walls due to the screen height of around 6 feet. However, with their teamwork and dedication, they overcame the challenge and completed the LED wall installation within 2 days.
  • The LED walls were a crucial component of the project, as they were designed to provide a visually stunning backdrop for the event. The team had spent time in planning and designing the layout of the walls. It ensures that they were perfectly aligned and positioned to create a seamless and immersive experience for the attendees.
  • Despite the challenges they faced, the team remained focused and determined to deliver the project on time. They worked tirelessly to ensure that every aspect of the installation was completed to the highest Audiovisual standard, from the wiring and cabling to the calibration of the screens.
  • In the end, their hard work paid off, as the LED walls provided a stunning and captivating display for the event. The attendees were impressed with the quality and clarity of the screens. The team received numerous compliments on their work.
Conclusion:

The use of advanced audiovisual technologies such as high-definition displays, interactive touchscreens, and immersive sound systems allowed the spacesto become more than just a place to grab a quick bite. Now, it serves as a hub of entertainment and engagement for visitors, providing an engaging and memorable experience.

Allwave AV’s attention to detail and commitment to excellence is evident in every aspect of the transformation, from the custom graphics and branding to the seamless integration of audiovisual technologies. The success of this project serves as a testament to Allwave AV’s ability to deliver exceptional results that exceed expectations.

Read more about digital cafeterias https://www.allwaveav.com/digital-cafeteria/

Netcracker Technologies’ Innovative Cafeteria Audio System Integration

Introduction: Cafeteria Audio System

This case study highlights the successful implementation of an advanced audio system in the cafeteria of Netcracker, a leading technology solutions provider. The objective was to create a seamless and immersive audio experience for employees, ensuring clear communication and enhancing the overall cafeteria ambiance. The study focuses on the selection and integration of key audio components and the associated services provided.

“I wanted to express my utmost satisfaction with the exceptional audio and video solutions you provided. From start to finish, your expertise, attention to detail, and professionalism were outstanding. The clarity of the audio and the visual quality of the videos surpassed our expectations. Thank you for your commitment to excellence and delivering a seamless experience. Highly recommended!”

  • Prakash Chelluri, Senior Engineer
  • Netcracker Technology
Client Background:

Netcracker operates in a fast-paced, technology-driven environment with a large employee base. They recognized the importance of providing a comfortable and engaging cafeteria space where employees can relax, communicate, and enjoy their meals. The client sought to upgrade their existing audio system to meet these requirements.

Objectives:
  • The primary objectives for the cafeteria audio system implementation were:
  • Clear and intelligible communication for announcements and employee engagement.
  • High-quality audio reproduction for background music and public address.
  • Flexibility and ease of use for different types of audio sources.
  • Seamless integration of audio components with the existing infrastructure.
  • Efficient installation, testing, and commissioning of the audio system.
  • Onsite support and user acceptance testing (UAT) for a smooth deployment.

To address the client’s objectives, the following audio components were integrated into the cafeteria space:

Wireless Microphone System:
  • 4-Channel UHF Wireless Microphone System: Allows multiple speakers to communicate wirelessly, providing flexibility and convenience.
  • Headworn/Headset Microphone for XR Series Bodypack Transmitters: Enables hands-free communication for speakers during presentations or announcements.
  • Mic Stand for Handheld Mic: Provides support for handheld microphones during live performances or interactive sessions.
Audio Mixer and Amplification:
  • Analog Audio Mixer with USB MP3 Player and Bluetooth Connectivity: Offers versatile audio mixing capabilities and allows playback from USB devices or Bluetooth-enabled devices.
  • Power Amplifier: Amplifies audio signals and ensures optimal sound quality and distribution throughout the cafeteria.
Speaker System:
  • 2-Way Open-Ceiling Pendant Speaker: Strategically placed speakers even provide sound coverage and distribute audio throughout the cafeteria space.
Rack System and Connectivity:
  • AV Rack: Houses and organizes the audio components, ensuring proper installation and maintenance.
  • Cables & Connectors: High-quality cables and connectors establish reliable connections between audio devices.
  • Bulk Cables: Additional cables for future expansion and flexibility in the audio system.
Services:
  • Installation, Testing & Commissioning: Professional installation and thorough testing to ensure proper functionality and integration of the audio system.
  • Onsite Support (Multiple Times): Dedicated technical support on-site to address any issues or modifications required during the deployment phase.
  • UAT – User Acceptance Testing: Involvement of end-users in the testing process to ensure the audio system meets their expectations and requirements.
Implementation and Results: Conclusion

The implementation of the audio system in Netcracker’s cafeteria involved meticulous planning, installation, and testing.

The results of the implementation were as follows:

  1. Clear Communication: The wireless microphone system, along with the head worn/headset microphones and mic stand, provided clear and intelligible audio for announcements, presentations, and interactive sessions.
  2. Enhanced Audio Experience: The analog audio mixer allowed seamless integration of various audio sources, including USB devices and Bluetooth enabled devices. This ensures that the cafeteria to play background music and other audio content to enhance the overall ambiance.
  3. Optimal Sound Reproduction: The power amplifier ensured efficient amplification of audio signals, delivering high-quality sound throughout the cafeteria. The strategically placed pendant speakers even provided sound coverage and an immersive audio experience.
  4. Organized Infrastructure: The AV rack system, along with properly installed cables and connectors, facilitated efficient management and maintenance.



Introduction:



“Despite facing delays due to global delivery issues with our requirements, Allwave provided us with exceptional assistance in arranging spare equipment till the project was fully completed. We were satisfied with the level of support provided by their team, particularly their project team; they also demonstrated a keen understanding of our pain points and offered the best possible solutions to address them. Thanks to his excellent project management skills, the escalations were also addressed and handled professionally”.

-Mr. Inayat Shaikh (IT Head)

Synechron, Pune

About the Project: Synechron Inc. Pune India



Synechron is a global consulting and technology organization that specializes in providing digital, business consulting, and technology services to financial institutions.

Synechron has a strong track record of delivering innovative solutions to its clients in the financial services industry. In addition to its expertise in digital and business consulting, Synechron has a deep understanding of the technology landscape, making it a trusted partner for financial institutions looking to stay ahead in a rapidly changing market.



Some additional points to consider about Synechron’s offerings include:



Synechron was looking to upgrade their Audiovisual System capabilities throughout their workspace. They identified several areas that required Audio Video Systems Integration, including the boardroom, pantry, digital cafeteria, reception area, meeting room, collaboration space, and a special area known as Finlab.

Upon the company’s acceptance of the proposed solutions, Allwave collaborated with their team to ensure timely and cost-effective installation. Additionally, they provided training to the company’s staff on how to use the new AV equipment with step-by-step instructions on how to utilize the solutions on standees.



Audio and Visual Upgrades:



Allwave AV provided a range of solutions to improve the audio and visual capabilities of the office facility.

The Polycom and Cisco Webex video conferencing systems in the boardrooms ensure clear audio and video during virtual meetings.

The Brightsign players and Crestron controllers make it easy for employees to control and manage the audio-visual equipment in the boardroom.

In the pantry and cafeteria, the new projectors, screens, and audio systems provide entertainment during breaks, while the gaming zone creates a fun and engaging environment for employees. Allwave AV also provided solutions for the installation of control systems to ensure the smooth operation and management of all AV equipment.



Intended Use of Few Areas for Audiovisual System Integrations:



Boardrooms: The boardrooms are used for important meetings and presentations. Allwave AV recommended and installed Polycom and Cisco Webex video conferencing systems, along with Brightsign players and Crestron controllers. These systems improve the quality of audio and video during virtual meetings, making it easier for employees to collaborate and communicate with clients and colleagues.

Finlab: Finlab was provided with a custom-made interactive display solution with push-pull locking type brackets and an effective customer engagement solution consisting of LG Touch display, LG Interactive digital board, Logitech USB camera, and thin client PC’s. The AV solutions for video walls used for visual workspace solutions included Prysm, an LED Video Wall. For the audio system, Shure ceiling microphones and a Phoenix microphone array with built-in DSP were installed, along with Clearone speakers and Crestron amplifiers. The control system includes Apple iPads, wireless content stream device, Amazon Echo Plus – Smart speaker with Alexa, and Google Nest Audio.

Pantry & Cafeteria: The pantry and digital cafeteria provide employees with a space to eat and take breaks. Allwave AV installed projectors, screens, and other Audiovisual System systems in these areas, allowing for entertainment during breaks. They also created a new gaming zone that features Xbox One Series and Microsoft Xbox X/S Wireless Controller Robot White, providing a fun and engaging environment for employees during their downtime.



Conclusion:



Overall, the company was thrilled with the results of the Audio Video Systems upgrades and the expert guidance provided by Allwave AV. The company now has a modern, fully functional office space that is equipped with the latest AV technology to support their business needs.

As a result of the AV upgrades, the company’s employees can now collaborate more effectively and efficiently, whether it be in large boardroom meetings, small huddle room team meetings, or informal collaboration spaces. Additionally, the new AV systems have improved the overall functionality and aesthetics of the office space.

Read more: https://www.allwaveav.com/boardroom-conference-rooms/
